Moulded Case Circuit Breaker 16A 3P
Moulded Case Circuit Breaker 16A 3P
Full Specifications

Kode ProdukM12B3B016
Deskripsi ProdukM12B3B016 - Moulded Case Circuit Breaker 16A 3P.
Range Of ProductBasic Series
Device ApplicationDistribution
Network TypeAC
Network Frequency50/60 Hz
[Ui] Rated Insulation Voltage1000 V AC 50/60 Hz
[Uimp] Rated Impulse Withstand Voltage8 kV
[Ue] Rated Operational Voltage690 V AC
Trip Unit Rating16 A at 40°C
Control TypeToggle
Mounting ModeFixed
Mechanical Durability20000 cycles
Contact Point100% Silver Plated
IP Degree Of ProtectionIP30
IK Degree Of ProtectionIK07
Warranty (In Months)12
StandardsIEC 60947-2 & GB/T 14048.2
Trip UnitThermal Magnetic



MCCB Vinsa M12B3B016 16A digunakan sebagai pemutus arus utama pada sistem distribusi listrik 3 phase. Dirancang untuk melindungi instalasi dari arus lebih dan korsleting, MCCB ini cocok untuk panel industri, mesin, dan gedung komersial dengan kebutuhan daya rendah hingga menengah.


Vinsa

Moulded Case Circuit Breaker 16A 3P

SKU : VINSA-M12B3B016
SALE
15 %
Rp 788,100Rp 669,885
Vinsa - Moulded Case Circuit Breaker 16A 3P - VINSA-M12B3B016
Pilih Varian
Molded Case Circuit Breaker (MCCB) 25A 3PMoulded Case Circuit Breaker (MCCB) 16A 3PMoulded Case Circuit Breaker (MCCB) 20A 3PMoulded Case Circuit Breaker (MCCB) 32A 3PMoulded Case Circuit Breaker (MCCB) 40A 3PMoulded Case Circuit Breaker (MCCB) 50A 3PMoulded Case Circuit Breaker (MCCB) 63A 3PMoulded Case Circuit Breaker (MCCB) 80A 3PMoulded Case Circuit Breaker (MCCB) 100A 3PMoulded Case Circuit Breaker (MCCB) 125A 3PMoulded Case Circuit Breaker (MCCB) M16F3B 160A 3PMoulded Case Circuit Breaker (MCCB) M25F 200A 3PMoulded Case Circuit Breaker (MCCB) M25F 225A 3P 35kAMoulded Case Circuit Breaker (MCCB) M25F 250A 3P 35kAMoulded Case Circuit Breaker (MCCB) M40F 315A 3P 35kAMoulded Case Circuit Breaker (MCCB) M40F 350A 3P 35kAMoulded Case Circuit Breaker (MCCB) M40F 400A 3P 35kAMoulded Case Circuit Breaker (MCCB) M63F 500A 3P 35kAMoulded Case Circuit Breaker (MCCB) M63F 630A 3P 35kAMoulded Case Circuit Breaker (MCCB) M80F 800A 3P 35kA
Send to WhatsApp


Weight0.91 kg
Dimensions13.00 x 7.50 x 5.60 cm
Color
No. of Poles3 P
Rated Current16 A
Breaking Capacity25 kA
Voltage380/415 V
DatasheetPDF Moulded Case Circuit Breaker 16A 3P

Related Products

Vinsa Cable Lug 2.5 - 4 mm, Bolt Hole 4.3 mm (Black)
SALE 15%
Vinsa VINSA-SV-3.5-4-BLACK

Cable Lug 2.5 - 4 mm, Bolt Hole 4.3 mm (Black)

Rp 75,200
Rp 63,920
Vinsa Thermal Overload Relay (63 - 80 A)
SALE 15%
Vinsa VINSA-TOR3363

Thermal Overload Relay (63 - 80 A)

Rp 856,600
Rp 728,110
Vinsa Under Voltage (Frame Size 63A) 200-240VAC
SALE 15%
Vinsa VINSA-MAUVT63

Under Voltage (Frame Size 63A) 200-240VAC

Rp 692,100
Rp 588,285
Vinsa Thermal Overload Relay 5,5 - 8 A
SALE 15%
Vinsa VINSA-TOR12

Thermal Overload Relay 5,5 - 8 A

Rp 346,100
Rp 294,185
Vinsa Thermal Overload Relay (23 - 32 A)
SALE 15%
Vinsa VINSA-TOR332

Thermal Overload Relay (23 - 32 A)

Rp 552,000
Rp 469,200


Other Products

GAE GAE 140148MS CS4 4P 800A, MOTORIZED CHANGE OVER SWITCH TWO LAYERS
GAE GAE-140148MS-CS4-4P-800A

GAE 140148MS CS4 4P 800A, MOTORIZED CHANGE OVER SWITCH TWO LAYERS

Rp 44,267,910

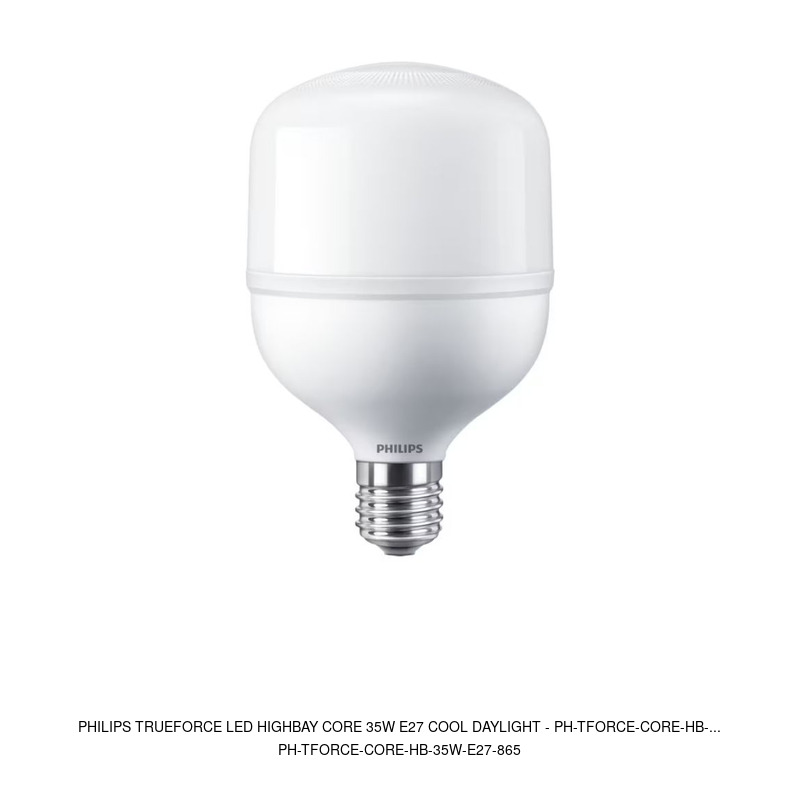

Philips Philips TrueForce LED Highbay Core 35W E27 Cool Daylight
