Moulded Case Circuit Breaker (MCCB) 80A 3P
Moulded Case Circuit Breaker (MCCB) 80A 3P
Full Specifications

Kode ProdukM12B3B080
Deskripsi ProdukM12B3B080 - Moulded Case Circuit Breaker (MCCB) 80A 3P.
Range Of ProductBasic Series
Device ApplicationDistribution
Network TypeAC
Network Frequency50/60 Hz
[Ui] Rated Insulation Voltage1000 V AC 50/60 Hz
[Uimp] Rated Impulse Withstand Voltage8 kV
[Ue] Rated Operational Voltage690 V AC
Control TypeToggle
Mounting ModeFixed
Mechanical Durability20000 cycles
Contact Point100% Silver Plated
IP Degree Of ProtectionIP30
IK Degree Of ProtectionIK07
Warranty (In Months)12
StandardsIEC 60947-2 & GB/T 14048.2
Trip UnitThermal Magnetic



MCCB Vinsa M12B3B080 80A cocok untuk panel distribusi utama dengan beban besar dan kebutuhan keandalan tinggi.


Vinsa

Moulded Case Circuit Breaker (MCCB) 80A 3P

SKU : VINSA-M12B3B080
SALE
15 %
Rp 788,100Rp 669,885
Vinsa - Moulded Case Circuit Breaker (MCCB) 80A 3P - VINSA-M12B3B080
Pilih Varian
Molded Case Circuit Breaker (MCCB) 25A 3PMoulded Case Circuit Breaker (MCCB) 16A 3PMoulded Case Circuit Breaker (MCCB) 20A 3PMoulded Case Circuit Breaker (MCCB) 32A 3PMoulded Case Circuit Breaker (MCCB) 40A 3PMoulded Case Circuit Breaker (MCCB) 50A 3PMoulded Case Circuit Breaker (MCCB) 63A 3PMoulded Case Circuit Breaker (MCCB) 80A 3PMoulded Case Circuit Breaker (MCCB) 100A 3PMoulded Case Circuit Breaker (MCCB) 125A 3PMoulded Case Circuit Breaker (MCCB) M16F3B 160A 3PMoulded Case Circuit Breaker (MCCB) M25F 200A 3PMoulded Case Circuit Breaker (MCCB) M25F 225A 3P 35kAMoulded Case Circuit Breaker (MCCB) M25F 250A 3P 35kAMoulded Case Circuit Breaker (MCCB) M40F 315A 3P 35kAMoulded Case Circuit Breaker (MCCB) M40F 350A 3P 35kAMoulded Case Circuit Breaker (MCCB) M40F 400A 3P 35kAMoulded Case Circuit Breaker (MCCB) M63F 500A 3P 35kAMoulded Case Circuit Breaker (MCCB) M63F 630A 3P 35kAMoulded Case Circuit Breaker (MCCB) M80F 800A 3P 35kA
Send to WhatsApp


Weight0.91 kg
Dimensions13.00 x 7.50 x 5.60 cm
Color
No. of Poles3 P
Rated Current80 A
Breaking Capacity25 kA
Voltage380/415 V
DatasheetPDF Moulded Case Circuit Breaker (MCCB) 80A 3P

Related Products

Vinsa Cable Lug SC 95mm - M12 Bolt Hole
SALE 15%
Vinsa VINSA-SC95-12

Cable Lug SC 95mm - M12 Bolt Hole

Rp 32,600
Rp 27,710
Vinsa Auxiliary Contact CFAUX04 Front Mounting 4 N/O
SALE 15%
Vinsa VINSA-CFAUX40

Auxiliary Contact CFAUX04 Front Mounting 4 N/O

Rp 114,800
Rp 97,580

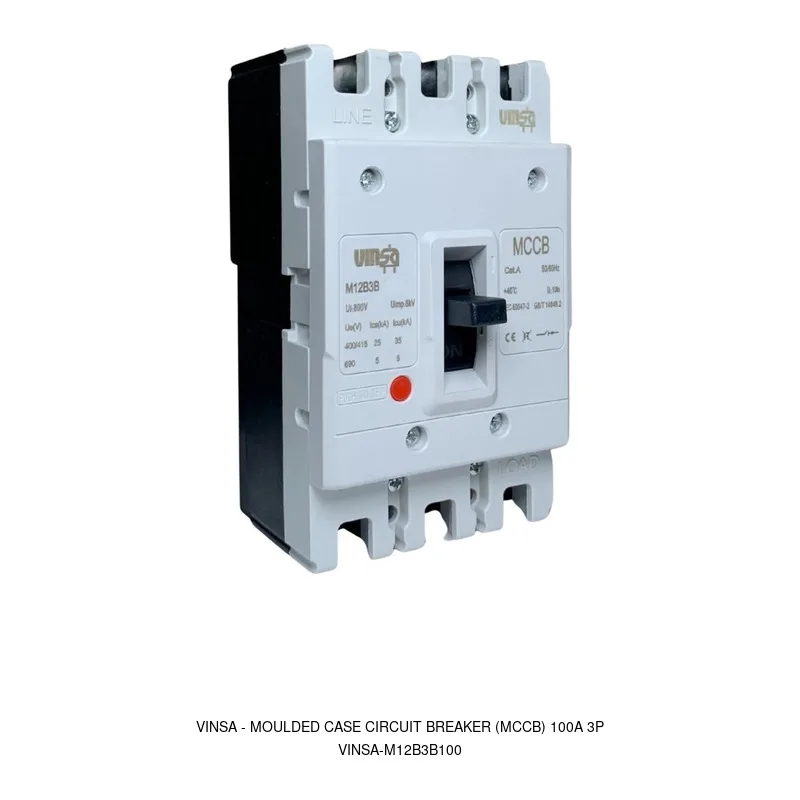

Vinsa Moulded Case Circuit Breaker (MCCB) 100A 3P
SALE 15%
Vinsa VINSA-M12B3B100

Moulded Case Circuit Breaker (MCCB) 100A 3P

Rp 788,100
Rp 669,885
Vinsa Cable Lug 2.5 - 4 mm, Bolt Hole 4.3 mm (Red)
SALE 15%
Vinsa VINSA-SV-3.5-4-RED

Cable Lug 2.5 - 4 mm, Bolt Hole 4.3 mm (Red)

Rp 75,200
Rp 63,920
Vinsa Shunt Release (Frame Size 100–125A)
SALE 15%
Vinsa VINSA-MAS125

Shunt Release (Frame Size 100–125A)

Rp 345,800
Rp 293,930


Other Products

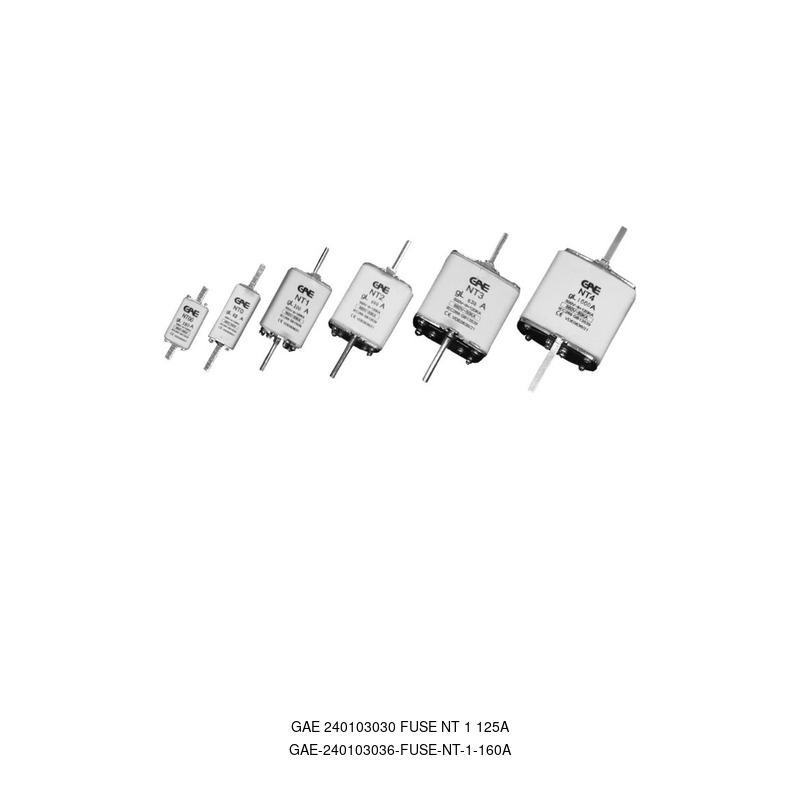

GAE GAE 240103030 FUSE NT 1 125A
